Brushless Motor

FUJIN

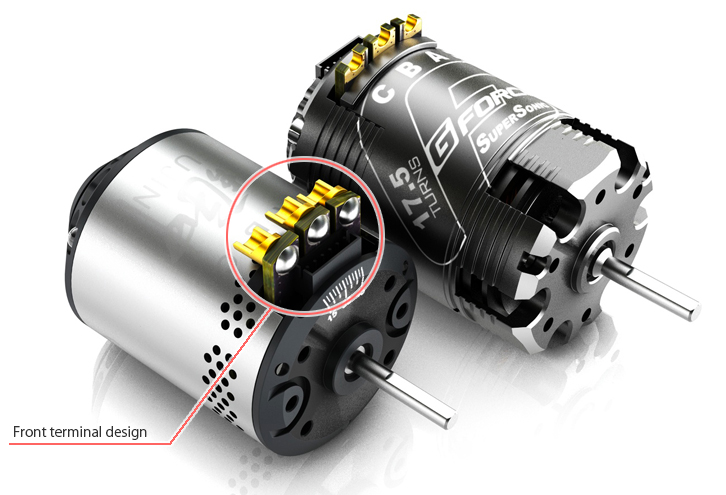

※It is designed to be placed on the shaft side of the terminal. There is the case that can not be mounted by the car model.
Parts No. Products Name
G0098 FUJIN 7.5T
G0072 FUJIN 8.5T
G0073 FUJIN 10.5T

Specifications

Turns Rotor (mm) KV (RPM/VCLT) Internal Resistance Voltage Watts (W)
7.5T 12.5*7.2(mm) 4700 0.0104Ω 7.4V 360
8.5T 12.5*7.2(mm) 4300 0.0138Ω 11.1V 340
10.5T 12.5*7.2(mm) 3600 0.0208Ω 11.1V 250

Bearing Size

  F bearing size R bearing size
Super Sonic 685ZZ(¢5*¢11*5mm) R2ZZ(¢3.175*¢9.525*3.967mm)
Super Velocity R2ZZ(¢3.175*¢9.525*3.967mm) R2ZZ(¢3.175*¢9.525*3.967mm)
Super Fast R2ZZ(¢3.175*¢9.525*3.967mm) R2ZZ(¢3.175*¢9.525*3.967mm)
Fujin R2ZZ(¢3.175*¢9.525*3.967mm) R2ZZ(¢3.175*¢9.525*3.967mm)
Raijin R2ZZ(¢3.175*¢9.525*3.967mm) R2ZZ(¢3.175*¢9.525*3.967mm)
